UA1850 E ADWS

economy rewinding machine with 185cm web width

UA1850 E ECONOMY REWINDER WITH 185CM WEB WIDTH

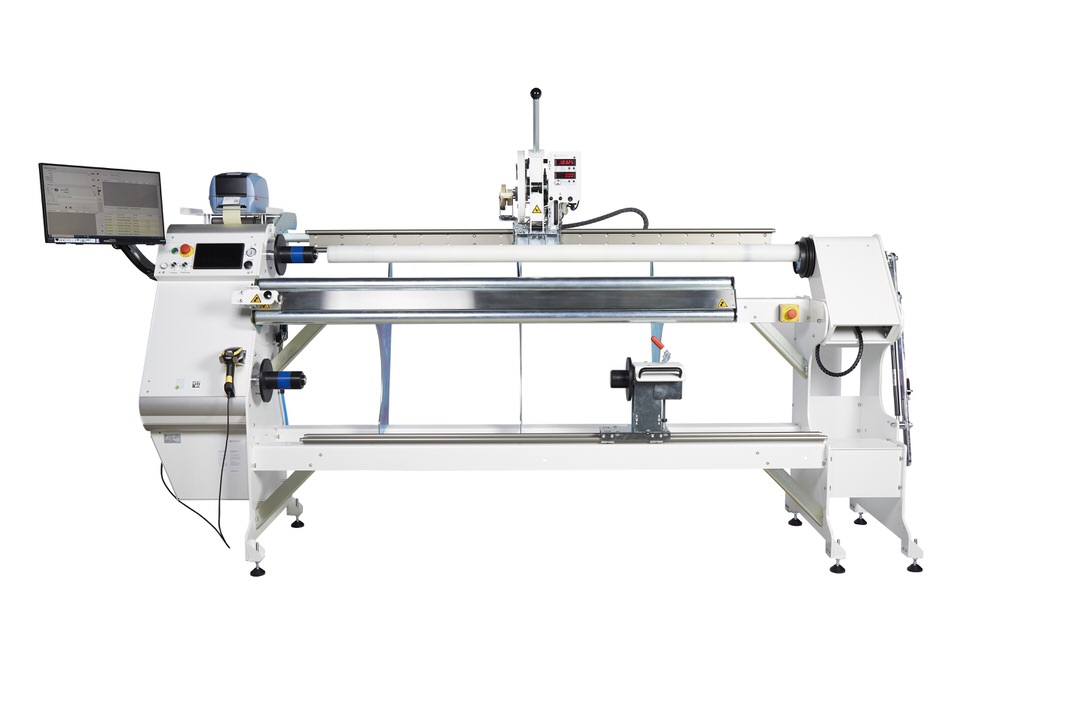

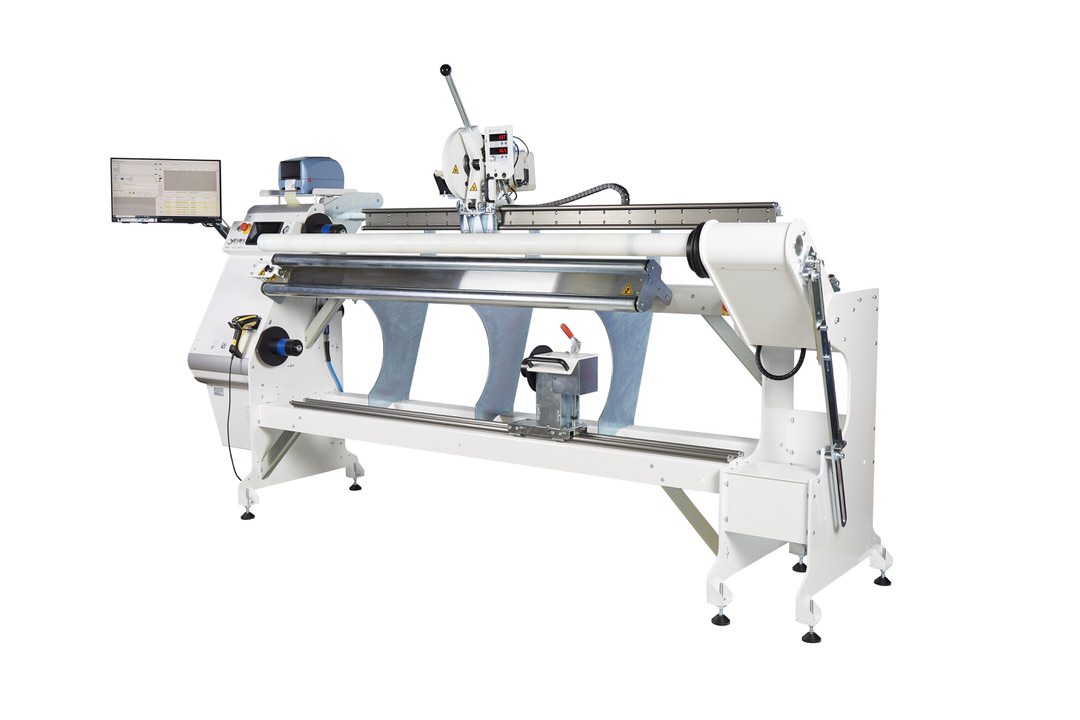

The UA1850 E ADWS rewinding and slitting machine combines the economy rewinder with a working width of 1850mm and a professional slitting system with a working width of 1950mm, and capable of meeting even the most sophisticated precision and efficiency requirements. Thus, a true NEPATA solution for rewinding and slitting of roll media such as sign vinyl, adhesive film, tinting film, sun protection film, flock and flex films, is now also available to smaller film dealers with a lesser daily throughput of individual unwinding and cutting, but nonetheless seeking precise cutting of tapes, ribbons, strips or simply custom roll widths according to client specifications. As with all NEPATA film conversion machines, the UA1850 E ADWS rewinds media very precisely and also slits the rolls, if necessary. It features a high level of safety and ergonomics for the operator, as well as high productivity thanks to minimal set-up times and high lane speeds. The winding tension is electronically regulated and adjustable. Upon winding, the film is manually trimmed to length at a cutting edge equipped with a dust cover. The detour features a pneumatic clamping system and two digital displays. It can optionally be equipped with a line laser for the cutting edge, as well as the unique flange lubrication system by NEPATA. The machine is conveniently operated via a touchscreen, which can be used to control all required operating modes and settings, and also features a pneumatic clamping system for 3 inch cores (2 inch optional for unwinding). The maximum diameter for unwinding rolls is 400mm, while rolls with a maximum diameter of 280mm can be rewound and slit. The maximum rewinding speed is 1.0m/s, the maximum roll weight is 25kg.
The UA1850 E ADWS rewinding and slitting machine is fully compatible with the ConvertPlus2 software, which allows for faultless control over all conversion processes from your ERP system – customer rolls and master rolls (storage rolls) each receive labels with the corresponding run lengths, widths and other data.
Like all NEPATA machines, the UA1850 E ADWS rewinder and slitter represents faultless and precise unwinding and cutting of roll media with high productivity, while avoiding errors and waste – all at an attractive price that is well-suited for smaller film dealers and distributors – and that’s what the E stands for: Economy!

DATA & FACTS

  • Rewinding, unwinding, slitting, length-measuring etc. of roll media up to 1850 mm in width
  • Slitting of roll media up to 1950 mm in width
  • Rewinding speed up to 1,0 m/s
  • Highly precise rewinding of <2 mm/m
  • Operation via touchscreen
  • Automatic pneumatic clamping
  • Rapid setup thanks to easily movable expansion chucks and swivel shaft
  • Precise slitter with optional flange lubrication system
  • Slitting blades available for all applications
  • Control via ConvertPlus2 software possible – including barcode labels for customer and storage rolls
  • Quick return on investment, even for smaller film retailers, thanks to error and waste avoidance

TECHNICAL DATA

Max. rewinding media width 1850mm
Max. slitting media width 1950 mm
Max. winding speed 1,0m/s
Max. roll diameter winding and slitting280mm
Max. roll diameter unwinding400mm
Core diameter 3 "(2" optional, unwinding only)
Slitting accuracy < 2mm/m*
Measuring accuracy< 2mm/m*
Max. media thickness 1mm*
Max. roll weight 25kg
Min. Slitting width left edge 100mm
Min. slitting width narrow roll 5mm*
Power supply AC voltage 230 V / 50 Hz - 60 Hz
Compressed air supply 6bar
Noise level < 70dB
Power consumption 1500W
Working environment +5°C to +35°C
Dimensions (H x D x W) 1468mm x 535mm x 2845mm
Weight370kg

MATERIALS THAT OUR MACHINES CAN PROCESS

SIGN VINYL, PRESSURE SENSITIVE VINYL

SANDBLASTING FILMS

MASKING FILMS

CAR-WRAPPING VINYL

MAGNETIC FILMS

FLEX FILMS, HTV

FLOCK FILMS

WINDOW TINTING FILMS

DIGITAL PRINT MEDIA

BANNERS

PHOTO PAPERS

PAPERS

WALLPAPERS

REFLECTIVE SELF ADHESIVE FILMS

MESH
