1900 ADW

SLITTING MACHINE

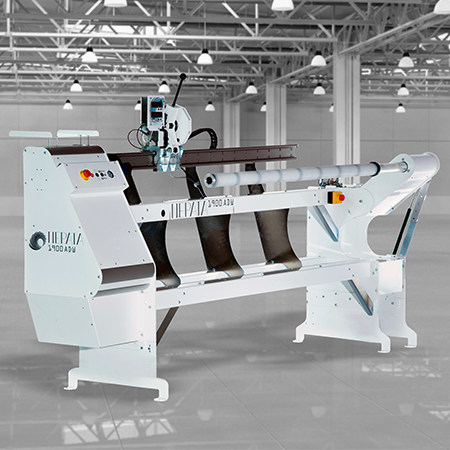

1900 ADW SLITTING MACHINE

PRECISION SLITTING AS WIDE AS 1900MM / 75IN

The professional slitting machine 1900 ADW was developed to facilitate rapid and precise slitting of various types of media. Its primary focus lies on cutting self-adhesive films, digital print media, flock materials, flex films and similar materials – with excellent accuracy.

The continuous swivel shaft is user-friendly and its operation requires almost no manual effort. Loading and unloading of paper cores and slit vinyl rolls is a matter of mere seconds. The swivel shaft‘s configurable end position guarantees an ergonomic operation, even for the smallest employee. The 1900 ADW features an optionally lockable guided rotary blade, mounted to a smooth-running axial slide. Thanks to its two digital displays, adjusting it to a relative dimension, as well as an absolute dimension is a cakewalk. A push of a button with the left hand suffices to block the axial slide and spin the roll, the right hand may now be used to slit the roll.
Tensioning of the slitting shaft happens automatically by means of compressed air. Various slitting modes are available, depending on one‘s desired mode of operation – the cutter may for example be permanently axially blocked, while film rolls may be swapped, or the film remains blocked and spinning, while allowing for the cutter to be repositioned.

The unique bracket lubrication system wets the blade with silicone oil when cutting – for perfect cutting results. A line laser on the slitting head shows you the exact and reliable position of the slitting blade on any film or paper surface.

Film rolls with a diameter of up to 280mm / 11in may be slit. The 1900 ADW can process rolls as wide as 1900mm / 75in. The machine is controlled via the internal controller and may be complemented by the extensive ConvertPlus2 software.

FACTS & DATA

Slitting up to 1900mm / 75in

Operation via ConvertPlus2 software
including bar code labels

Slitting accuracy of < 1mm/m / <  99.9%
for short and master rolls

Adjustible swivel shaft
for perfect ergonomic

Automatic pneumatic tensioning

Easy to operate slitting unit
with dual digital display

Unique bracket lubrication system for
dosed wetting of the blade during slitting

Line laser at the slitting head for
exact marking of the position of the slitting blade

TECHNICAL DATA

Max. working width, slitting1900mm / 75in
Max. roll diameter, slitting280mm / 11in
Sleeve diameter3“ (2" optional)
Min. slitting width from left edge200mm / 8" (UA1900 ADW)
50mm / 2" (UA1900 ADWS)
Slitting accuracy< 1mm/m* / < 99.9%
Max. roll weight50kg / 110lbs
Power supplyAC voltage 230 V / 50 Hz - 60 Hz
Power input1500W
Working environment+ 5°C to + 35°C / 41°F to 95°F
Dimensions (h x d x w)1468mm x 535mm x 3145mm / 58in x 21in x 124in
Weight600kg / 1543lbs

* Depends on material being used. We will gladly provide you with information.

MATERIAL

SELF-ADHESIVE FILMS

SANDBLASTING FILMS

 MASKING FILMS

CAR WRAPPING FILMS

MAGNETIC FILMS

FLEX FILMS

FLOCK FILMS

WINDOW FILMS

DIGITAL PRINT MEDIA

BANNERS

PHOTO PAPER

PAPERS

WALLPAPER

REFLECTIVE FILMS

MESH
